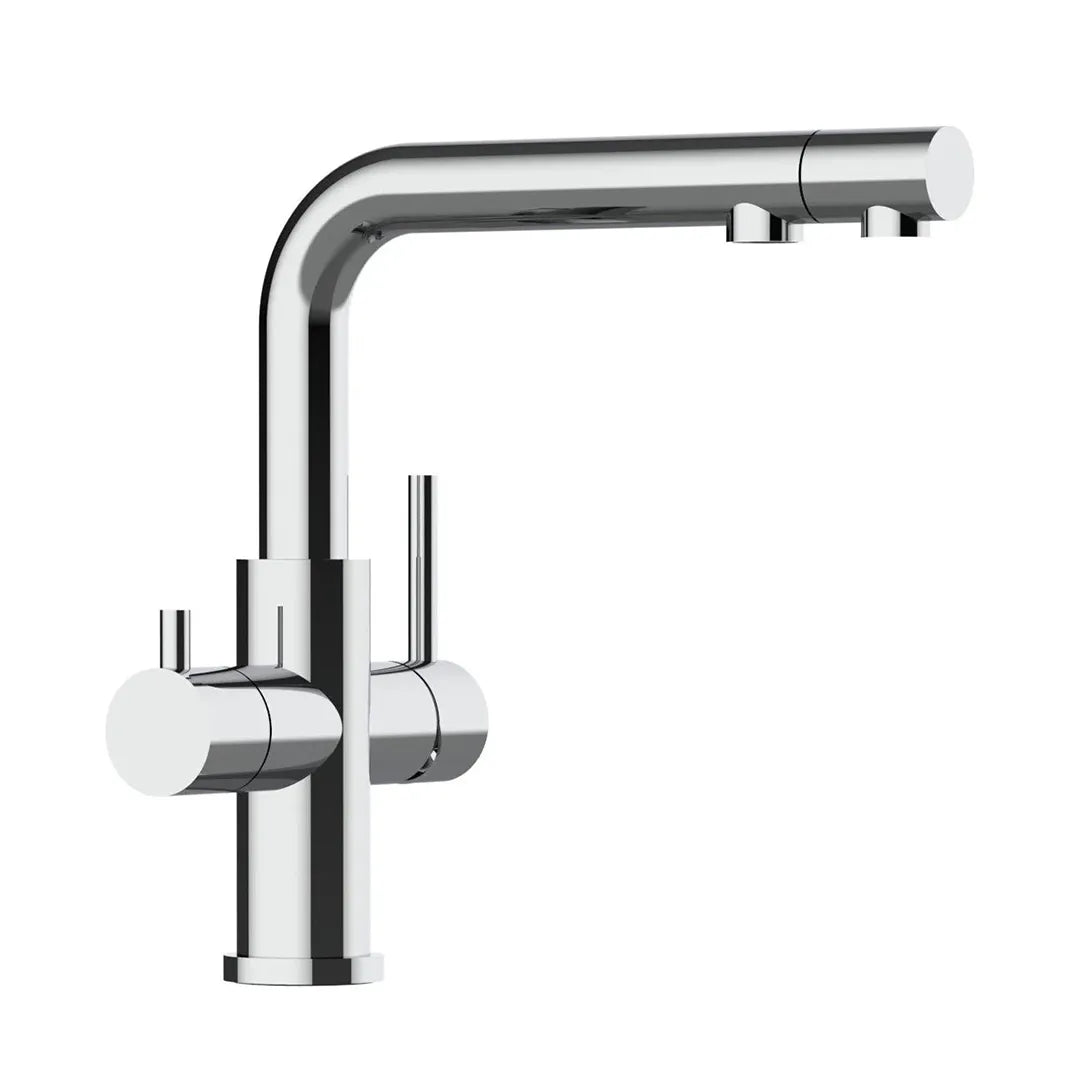

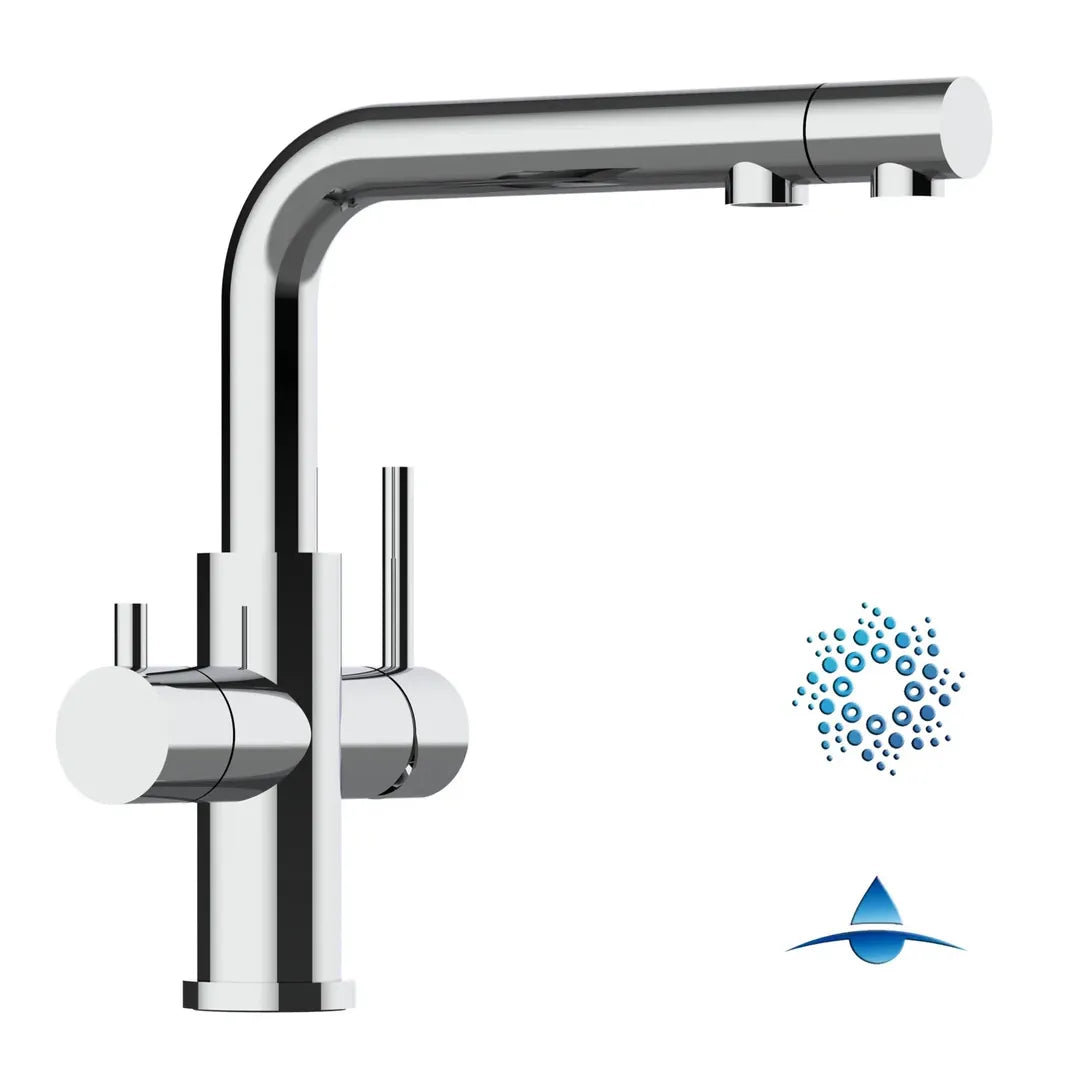

Viziotechnik 4-Way Water Tap with Pull-Out Spray – High-Gloss Stainless Steel – VZFX215000

4-in-1 function: hot water, cold water, and 2 additional separate water types from just one tap
Solid high-gloss polished stainless steel AISI 316 (surgical steel) – particularly elegant, durable, and corrosion-resistant
360° swivel spout – maximum freedom of movement at the sink

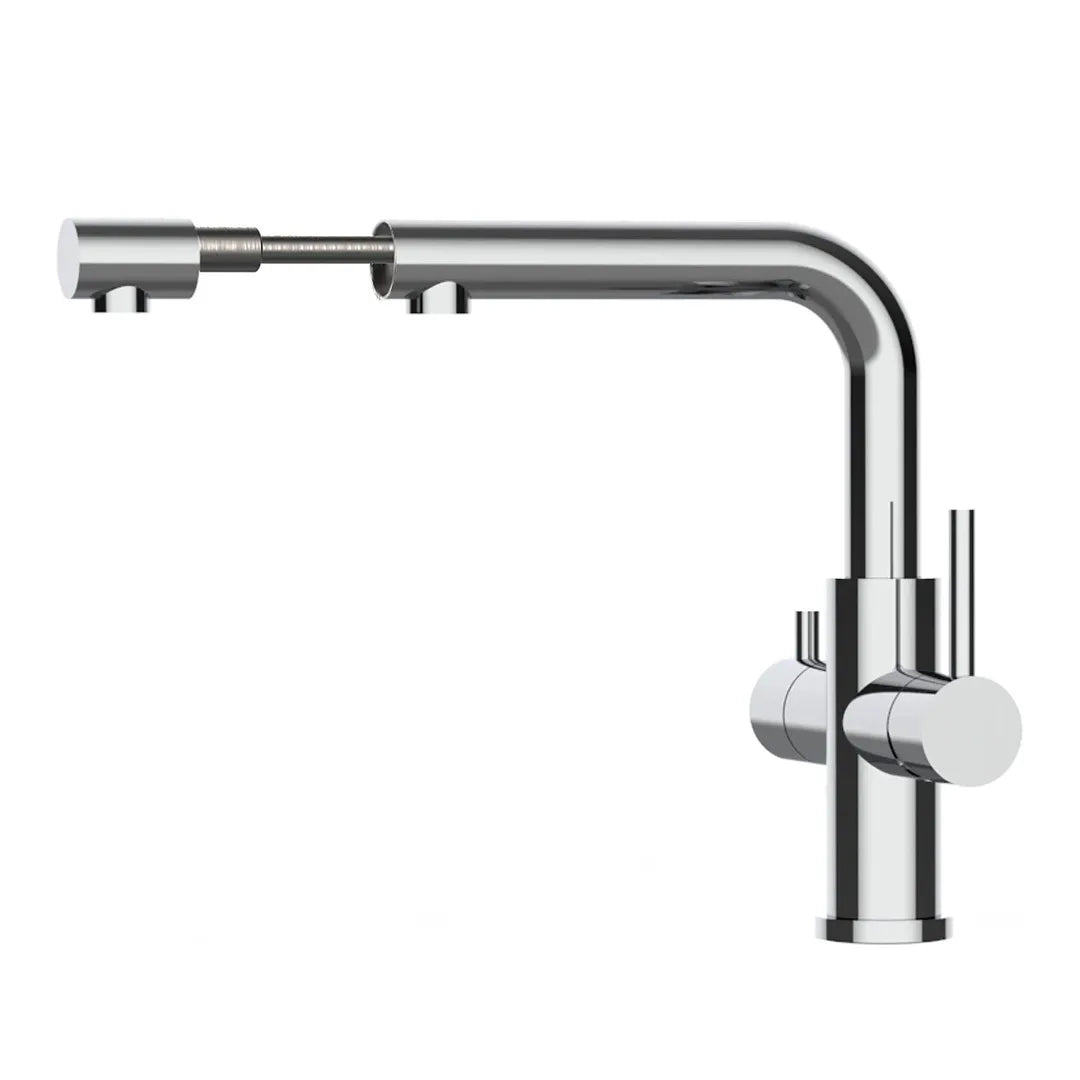

Extendable 2-jet hand spray – more comfort when rinsing and cleaning, incl. large operating radius of approx. 60 cm
Separate water line for filtered water – ideal for osmosis systems and activated carbon filters
Stable FIX&LOCK mounting – quick and secure installation on the sink
Universally compatible: Suitable for all under-sink water filter systems
849,36 €
849,36 €
  • Visa
  • MasterCard
  • Apple Pay
  • Google Pay
  • Klarna
  • PayPal
  • vorkasse
Best Price Guarantee
Free shipping from €79
Delivery time 5-8 business days
30-day return policy
Free personal consultation
Installation and maintenance upon request

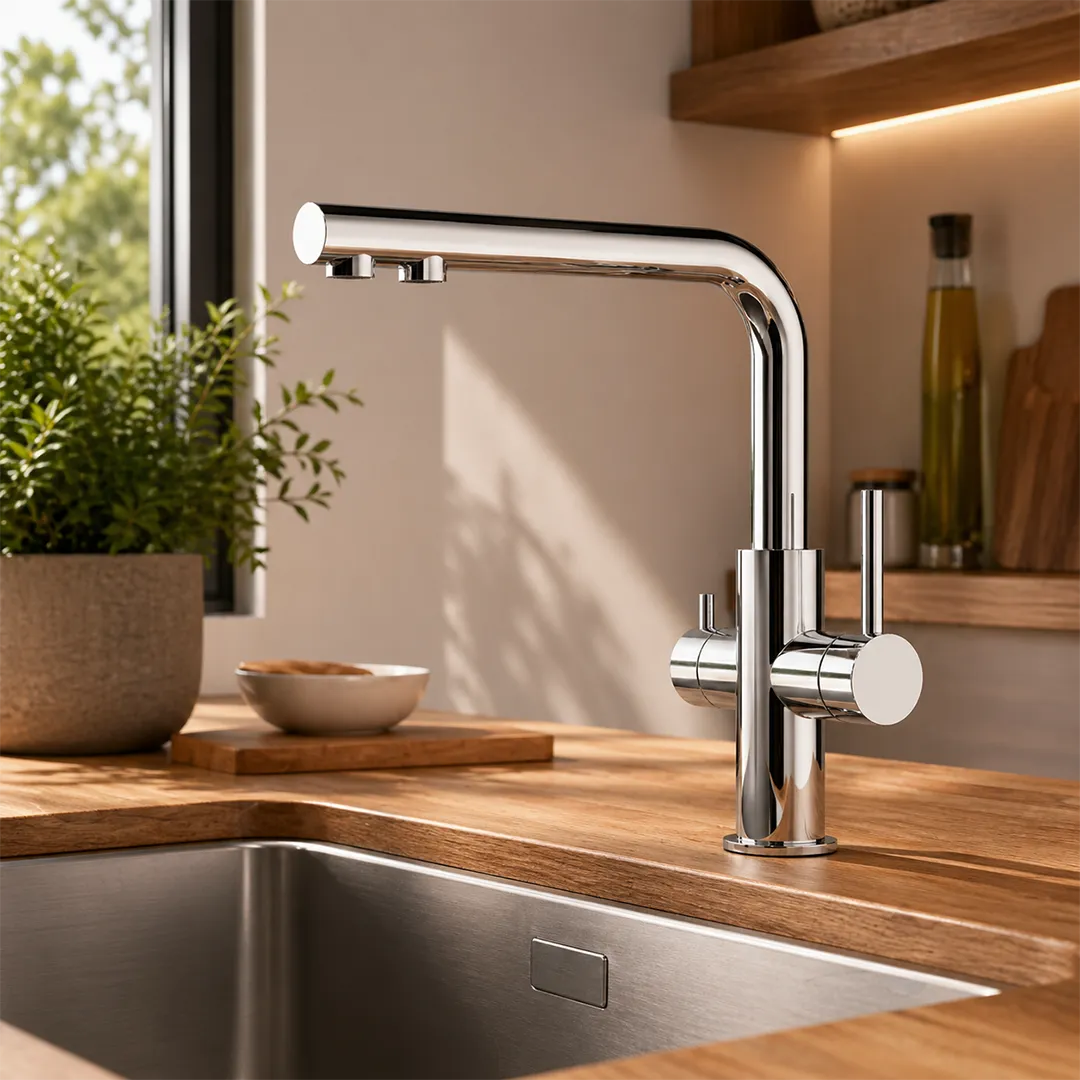

The high-quality 4-way kitchen faucet made of solid AISI 316 stainless steel (surgical steel) from Vizio combines modern design with maximum functionality. The high-gloss surface provides a particularly elegant look and fits perfectly into high-end kitchens. With just one faucet, cold water, hot water, and two other types of filtered water can be conveniently dispensed. This makes this faucet ideal for sophisticated water filtration systems, where, for example, osmosis water and remineralized water or hydrogen water are used.

Switching between water types is convenient via the integrated 2-way diverter valve. For water dispensing, a separate spout for filtered water is available, preventing contact with unfiltered tap water.

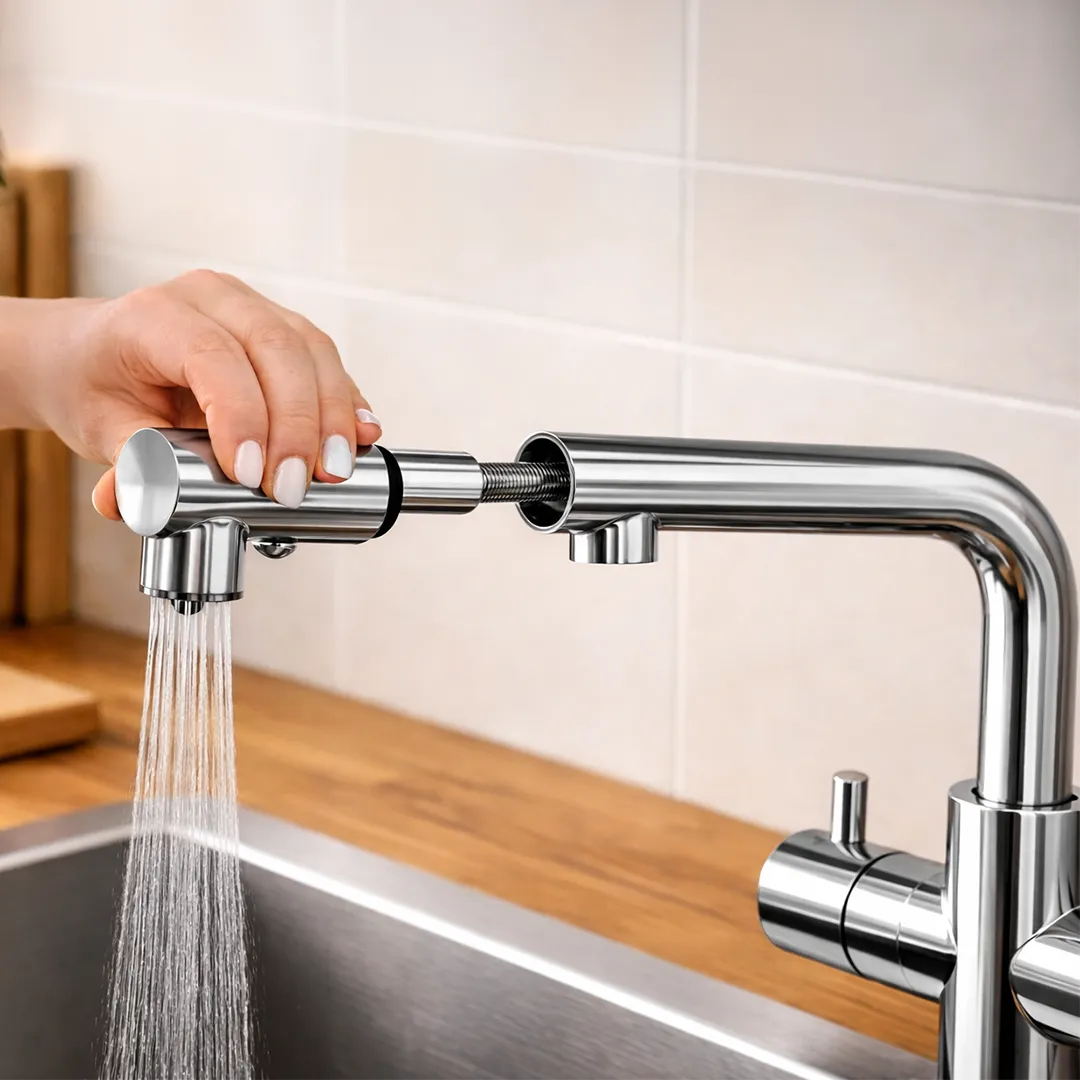

The 360° swivel spout ensures maximum flexibility at the sink. In addition, the faucet features a pull-out 2-spray metal hand shower, which significantly facilitates cleaning the sink, rinsing food, or filling large pots. The operating radius is approximately 60 cm.

Thanks to the cold start function, the handle rotates exclusively forward, thus not hitting the wall even when mounted close to a wall.

The faucet is ideal for activated carbon filter systems and reverse osmosis systems, as the use of solid stainless steel prevents a metal migration effect. All materials used are food-safe and comply with the requirements for drinking water. The connection hoses are DVGW KTW A1 certified.

Thanks to the FIX&LOCK mounting system, the faucet can be installed particularly easily and securely. This model comes with a 2-year manufacturer's warranty, and spare parts are available for at least 10 years.

Delivery includes:

  • 1 × 4-way kitchen faucet made of AISI 316 stainless steel
  • 4 × braided flexible connection hoses (3/8")
  • Installation instructions with manufacturer's contact information and warranty notice
Product Dimensions
Total height of the faucet 277 mm
Spout height (sink to outlet) 242 mm
Spout projection 225 mm
Distance to the beginning of the outlet 163 mm
Length of shower head / spout head 60 mm
Distance between spray openings 62 mm
Spout pipe diameter Ø 30 mm
Faucet body diameter (side) Ø 42 mm
Base diameter Ø 45 mm
Width of the faucet body 166 mm
Control lever height 85 mm
Installation depth under worktop 68 mm
Total depth under panel 199 mm
Further depth measurements 103 mm / 138 mm
Swivel range of spout 140°
Tap hole / Sink bore Ø 35 mm
3-Wege Küchenarmatur Edelstahl Maße
Technical Data
Product Type 4-Way Kitchen Faucet / Sink Mixer with Hand Shower
Material Solid Stainless Steel AISI 316 (Surgical Steel)
Surface Stainless Steel
Water Types Hot water, cold water and 2 separate filtered water types
Filtered Water Supply Separate internal channel made of stainless steel AISI 316
Filtered Water Operation 2-way diverter valve on the faucet
Filtered Water Spout Separate spout
Spout 140° swiveling
Shower Retractable 2-jet hand shower made of metal, operating radius approx. 60 cm
Shower Functions Volume spray / Rain spray
Mixing Cartridge High-quality ceramic mixing cartridge Ø 35 mm
Handle System Cold start (handle only rotates forward)
Connection Hoses 4 braided flexible hoses, connection size: 3/8"
Drill Hole / Faucet Hole Ø 35 mm
Recommended Operating Pressure 1.5 – 4.5 bar
Recommended Water Temperature 5 – 65 °C
Connection Hose Certification DVGW KTW A1
Standards ISO EN DIN 200 (Drinking water faucets)
Warranty 2-year manufacturer's warranty
Spare Part Availability Available for at least 10 years

Solid Surgical Steel

Made of AISI 316 stainless steel – a particularly high-quality, hygienic material. Corrosion-resistant, taste-neutral, and ideal for osmosis systems as no metal is released into the filtered water.

Cold Start Function

The handle only rotates forward, preventing it from hitting the wall. In the middle position, the faucet always starts with cold water – this saves energy and prevents unnecessary heating of hot water.

Technical Specifications

FIX&LOCK – simple and stable installation

FIX&LOCK – simple and stable installation

Thanks to the well-designed fixing unit, the faucet can be installed quickly and securely on the sink. The fixing nut is first tightened by hand and then conveniently secured with a screwdriver – for a particularly firm fit.

Retaining rings for long-lasting spouts

Retaining rings for long-lasting spouts

Food-grade PE circlips ensure that the spout sits securely while still being easy to swivel. At the same time, the O-rings are protected, which significantly increases the service life of the fitting.

FLEX-READY connection hoses

FLEX-READY connection hoses

The high-quality Panzerflex hoses (45 cm) with 3/8" sealing rings enable particularly easy installation. They are DVGW KTW A1 certified and prevent the formation of biofilm – for permanently hygienic water.

This is how a 4-way water tap is constructed

Filtered Water

A pipe supplies you with cleanly filtered drinking water

Cold and hot water

The other two lines are responsible for cold and hot tap water as usual

Separate lines

For maximum hygiene and purity, the filtered and unfiltered water lines run separately.

Hydrogen water

For even more energy, you can enrich your water with molecular hydrogen
